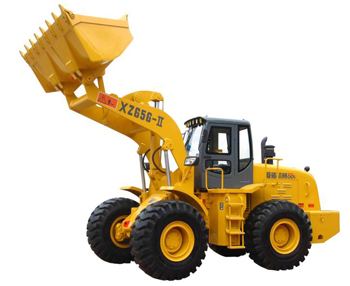

Wheel Loader >>XZ656-Ⅱ


product01 Model : XZ656-Ⅱ

- Standard bucket capacity:2.7m3
- Rated load:5.0t
- Operating weight:16.2±0.5t
- Engine power: 162KW

Brief introduction
1- Equipped with Styre diesel engine WD615 67G3-28,which is of excellent performance and reliability
2- Diesel engine-torque converter-transmission.match rationally,powerful traction force in mixed working conditions.
3- Flexible- operated transmission,easy and low-effort control.
4- Single stage,4 elements(double turbine) converter enable continuously variable transmission,make it stable to start and easy to control.
5- Power shift transmission,implement hydraulic system.easy and low-effort control.
6- Fully hydraulic flow amplified steering system,easy snd low-effort reliability.
7- Z-bar loader linkage is capable of high breakout force and high dump height.
8- All-wheel,dual-line,disc-caliper-type brakes,rear mounted air reserviors,ensure safety and reliability.
9- Quenched intergral cutting edge bucket,more strength,better wearing resistance and long life.
10- New,sound insulated,air pressurization cab with optional air conditioner provides excellent visibility and operator's station.
11- Intergral openable hood,make it easy to maintain engine
12- Optional various implements


 Overall dimension



 XZ656-

 Length (Bucket on the ground)

 mm

 7550 ±20

 Height

 mm

 3450 ±20

 Width

 mm

 2910 ± 20

 Max. dumping height

 mm

 3195± 30

 Dumping reach

 mm

 1275 ±10

 Performance





 Operating weight

 16.2±0.5

 Bucket capacity

 M3

 2.7

 Rated load

t

5.0

 Turning angle

 °

 35± 1

Wheel base

mm

 2900 ± 10

Wheel track

mm

2300 ± 20

Min. ground clearance

mm

485 ± 10

Engine model



Styre WD615.67G3-28

Engine Rated power

KW

162

Engine Max. torque

NM

843

Engine Displacement

9.726

Max. climbing gradient

°

≥25°

Max. breakout force

KN

≥170

No. of shift (forward/reverse)



2/1

 Traveling speed

 Forward gear

 km/h)

 12

 Forward gear

 40

 Reverse gear

 16

Fuel tank capacity

 L

 325

 Hydraulic tank capacity

 L

215

 Lifting time

 s

 Hydraulic cycle time

 11.6

 Tire



23.5-25-16PR



OPTIONAL EQUIPMENT:
1- Loose material bucket, rock bucket
2- ROPS(roller protective structure), FOPS(Fall protective structure)
3- cool & warm type A/C, warm -wind type, Pre-heating system, Radio.
4- CUMMINS diesel engine ,Meritor Axle, ZF transmission



-
