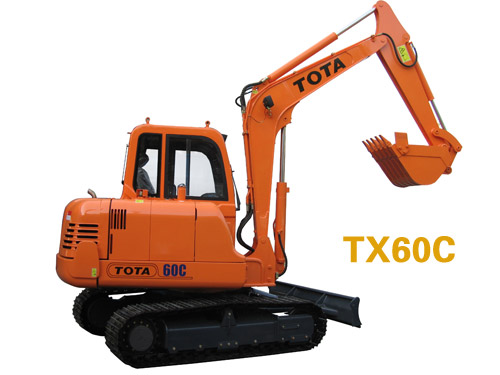

Crawler Excavator
Model：TX60
Brief introduction：
Standard bucket capacity：0.22m3；Operating weight：5.95t；Rated power：39.5kW.
Detailed date：
|
TX60C Main specifications | ||
|
（Description） |
（Technical specifications） | |
|
TX60C | ||
|
Standard bucket capacity |
0.22m3 | |
|
Operating weight |
5.95t | |
|
Gradeability |
35°（70%） | |
|
（400mm） Ground pressure |
0.32kgf/cm2 | |
Digging force |
Crowd force-arm |
25.8kN |
|
Breakout force-bucket |
34.1kN | |
Engine |
Model |
4TNV94L |
|
Rated power |
39.5kW（NET35.5） | |
|
Rated speed |
2200rpm | |
|
Capacity-Fuel tank |
120L | |
Hydraulic system |
Working pressure |
21MPa |
|
Flowrate |
2×55L/min | |
|
Max. swing speed |
9.6rpm | |
|
Travel speed（Low/high） |
2.4/4.0km/h | |
|
Capacity-Hydraulic oil tank |
70L | |
|
Dimensions | ||
|
Overall length |
6115mm | |
|
Overall width |
1940mm | |
|
Overall height |
2660mm | |
|
Overall width of upper structure |
1820mm | |
|
Overall height of cab |
2615mm | |
|
Counterweight clearance |
700mm | |
|
Height of engine cover |
1665mm | |
|
Min. ground clearance |
390mm | |
|
Length of tail |
1685mm | |
|
Tail swing radius |
1830mm | |
|
Distance between tumblers |
1990mm | |
|
Track length |
2540mm | |
|
Frame length |
1900mm | |
|
Track gauge |
1500mm | |
|
Length of standard crawler |
400mm | |
|
Blade height |
360mm | |
|
Height of lift up blade |
400mm | |
|
Depth of lower blade |
570mm | |
|
Working Range | ||
|
Description |
1.6m | |
|
Max. digging reach |
6150mm | |
|
Max. digging reach on ground |
6050mm | |
|
Max. digging depth |
3800mm | |
|
（8＇） Max. digging depth（8＇） |
3405mm | |
|
Max. vertical digging depth |
3205mm | |
|
Max. cutting height |
5810mm | |
|
Max. dumping height |
3960mm | |
|
Min. slew radius |
2355mm | |
